Merkezi Vakum Sistemleri

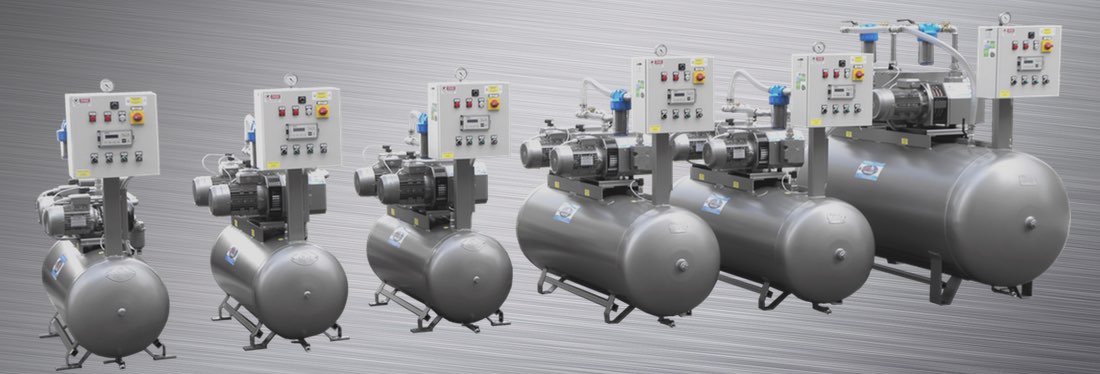

Centralized vacuum systems with oil or dry injection pumps, equipped with a horizontal or vertical tank and electrical control panel, designed to guarantee a constant vacuum level.





Horizontal vacuum system with a 1 tank pump design.

The vacuum pump is assembled directly to the steel tank to reduce clearance requirements. The system can be supplied with an oil pump or dry pump depending on the required application. The pump is equipped with a safety suction filter, non-return valve and shut-off valve. The electrical power panel and controls guarantee maximum efficiency; the pump can be started only if requested, thus reducing energy consumption to a minimum.
Nominal pumping speed: from 12 m3/h
Ultimate pressure: 10 mbar PBO series – 0.5 mbar PBOM series – 150 mbar S series




Horizontal vacuum system with a 2 tank pumps design.

The vacuum pumps are assembled directly to the steel tank to reduce clearance requirements. The system can be supplied with an oil pump or dry pump depending on the required application. The pump is equipped with a safety suction filter, non-return valve and shut-off valve. The electrical power panel and controls guarantee maximum efficiency; the pumps can be started only if requested, thus reducing energy consumption to a minimum.
Nominal pumping speed: from 12 m3/h
Ultimate pressure: 10 mbar PBO series – 0.5 mbar PBOM series – 150 mbar S series




Horizontal / vertical vacuum system.

The vacuum pumps are assembled directly onto a horizontal or vertical steel frame. The system is equipped with an accumulation tank and can be supplied with oil pumps or dry pumps depending on the required application. Each pump is equipped with a safety suction filter, non-return valve and shut-off valve. The electrical power panel and controls guarantee maximum efficiency, signalling any malfunctions; the pumps can be started only if requested, thus reducing energy consumption to a minimum.
Nominal pumping speed: from 12 m3/h
Ultimate pressure: 10 mbar PBO series – 0.5 mbar PBOM series – 150 mbar S series




Multi-pump vacuum system.

High capacity vacuum systems. The vacuum pumps are assembled onto a horizontal or vertical steel frame. The system is equipped with two or more accumulation tanks and can be supplied with oil pumps or dry pumps depending on the required application. Each pump is equipped with a safety suction filter, non-return valve and shut-off valve. The electrical power panel and controls guarantee maximum efficiency, signalling any malfunctions; the pumps can be started only if requested, thus reducing energy consumption to a minimum. The multi-pump system guarantees continuous operation.
Nominal pumping speed: from 12 m3/h
Ultimate pressure: 10 mbar PBO series – 0.5 mbar PBOM series – 150 mbar S series

FEATURES
