Power-Saving Attachment ECO-SHOCK ES10

eco-shock

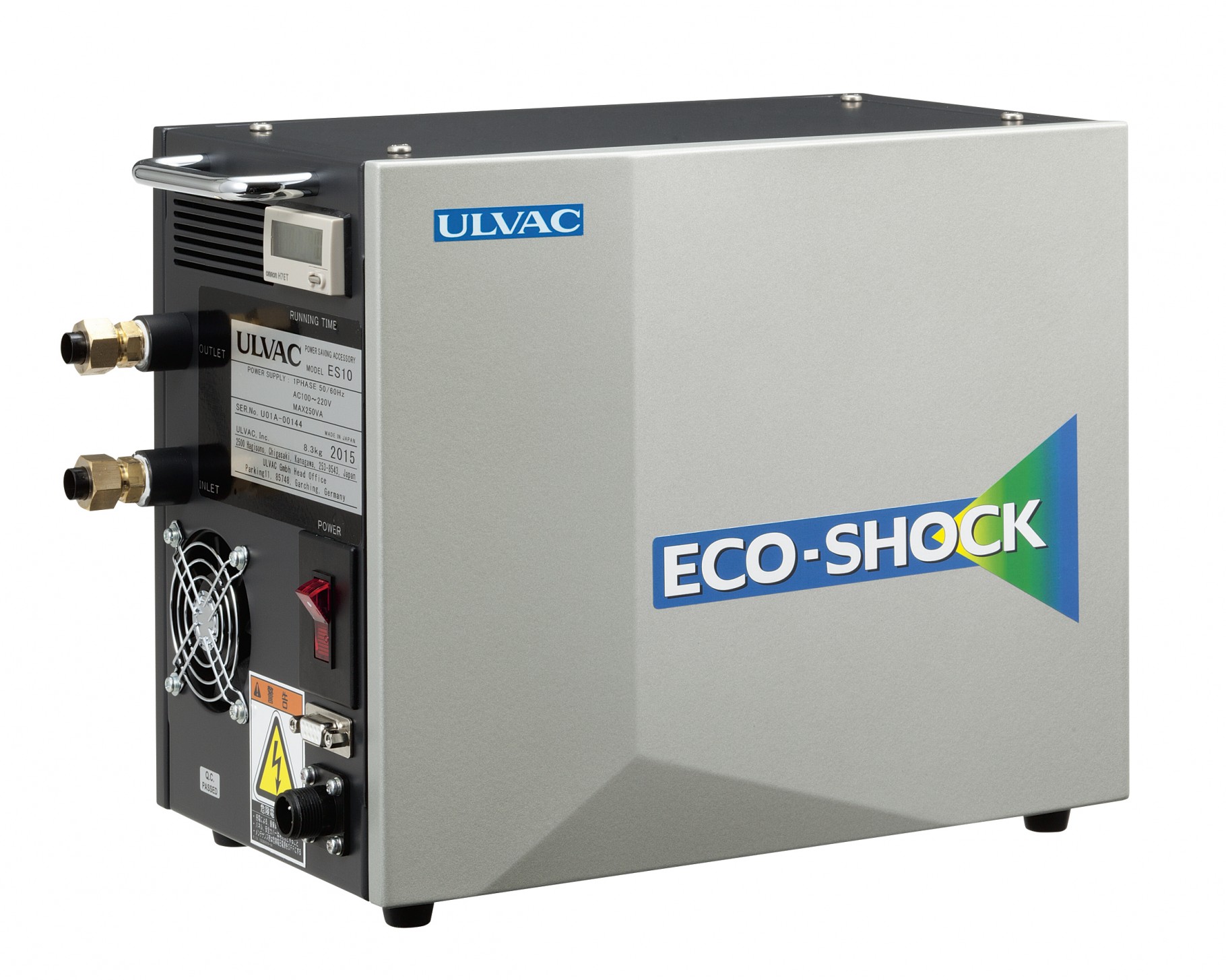

ECO-SHOCK is a revolutionary dry pump accessory that can dramatically reduce power consumption by attaching to the dry pump exhaust line.

















Features

  • Max.80% reduction of power consumption of the dry pump
  • No reduction in pumping performance
  • Simple installation

Applications

  • Dry vacuum pumps for evacuating iner gases such as air, nitrogen or argon.
  • Dry vacuum pumps used with sputtering or loading / unloading chambers.

Specifications

ModelES10
Power supplyVoltage, frequency, phase100 to 220 VAC, 50 / 60 Hz, single-phase
Power consumption65W
(Reading when pressure is at ultimate puressure,
and gas for shaft seal and gas ballast are 0 Pa·m3/s)
ControlInputRemote start / stop (DC 24V contact with voltage)
Non-voltage contact with contact capacity of 2.0 A Min. required
OutputOvercurrent alarm output (non-voltage contact)
Contact capacity :  DC 24V, 1.0 A
OperationManual start switch
DisplayDisplay of operation time
AppearanceDimensionsEco-Shock : 175mm x 310mm x 240 mm
Valve unit : φ66mm x 110 mm (NW40)
WeightEco-Shock : 8.3 kg
Valve unit : 800 g
ConnectionConnection portG1/4" (INLET , OUTLET)
The connector has been installed.
Recommended pipingφ: 6.53 mm Min.
Length : 3 m Max.



ManufacturerULVAC
ModelLR60LR90LR180
Evacuation speed *11300L/min2100L/min3980L/min
Measured power
consumption *2
2.1kW3.6kW6.6kW
Measured power consumption
with ECO-SHOCK attached *2 *3 *4
0.7kW1.0kW1.6kW
Power reduction rate67%72%76%

*1

At 60Hz power.

*2

Power consumption at ultimate pressure.

*3

Including power consumption of ECO-SHOCK.

*4

Reading at ultimate pressure, with shaft seal and gas ballast at 0Pa·m3/s. These valves  change slightly depending on the gas flow at ballast and shaft seal.

Data download

To download drawing data and I / O data, advance user registration (free) is required.
Those who do not have user registration please register from the user registration page.


  •
