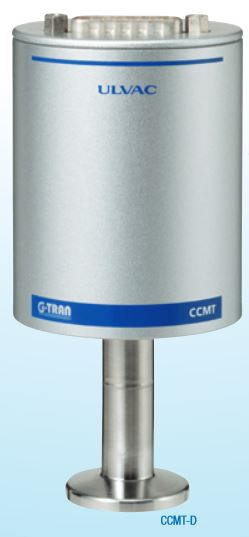

CERAMIC CAPACITANCE MANOMETER, CCMT-D SERIES

CERAMIC CAPACITANCE MANOMETER, CCMT-D SERIES

The CCMT-D series is a capacitance manometer, which detects static electric capacitance occurring when a barrier membrane made of ceramic (alumina) is deformed by changes in gas pressure.

FEATURES

  • Adoption of Ceramic Sensor
    Corrosion resistant ceramic sensor
    Excellent long term signal stability

  • Absolute Pressure Measurement
    Whole pressure measurement that does not depend on the gas types
    is possible

  • Short Warm-up Time
    Fast stability after power on

  • Temperature Compensation

  • Protection Function
    Sensor protected against contamination

  • Easy Zero Point Adjustment
    Push button zero point adjustment

  • Output Signal
    Accurate linear output (DC 0 to 10V)

  • Power Input
    Wide range voltage power supply (DC14 to 30V)

  • Small Size and Lightweight Sensor
    Compact in size with 329g weight (pipe end type)

SPECIAL FEATURES / FURTHER APPLICATIONS

  • Vacuum melting or vacuum heat treatment
  • Thin ilms deposition system
  • Pressure reduction furnaces
  • Gas exchange or gas sealing etc.
  • PV, FPD manufacturing equipment
