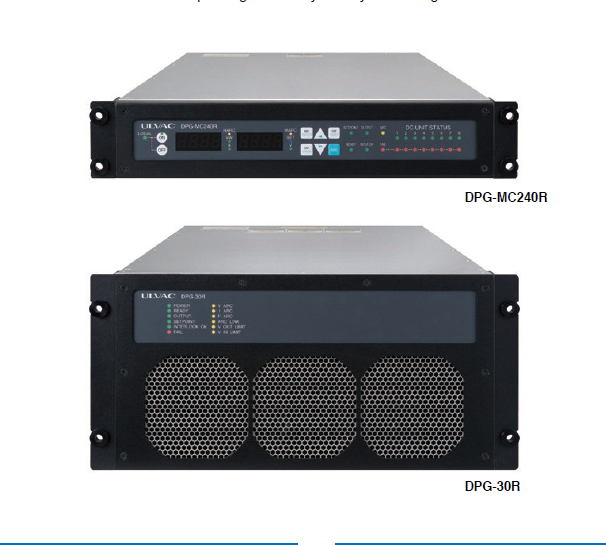

DC POWER GENERATOR DPG-30 R

FEATURES

• Increased Reliability
  Designed with reliable parts and circuit.
• Equipped with Low Arc Energy Circuit
  A low arc energy circuit, which interrupts output immediately
  when arc is generated, is equipped as standard specification.
• Wide Range Power Output Control
  Possible to output up to 120kW and control up to 4 units of
  power generator (DPG-30R) at same time by a single controller
  (DPGMC120R).
  Possible to output up to 240kW and control up to 8 units of
  power generator (DPG-30R) at same time by a single controller
  (DPGMC240R).
• No Cooling Water is Required
  Air-cooled.
• Wide Range Input Power
  AC380 to 480V ±10%.
• Operation Without Controller
  Possible to operate without the controller by using external
  control terminal in the case of 30kW or lower.
