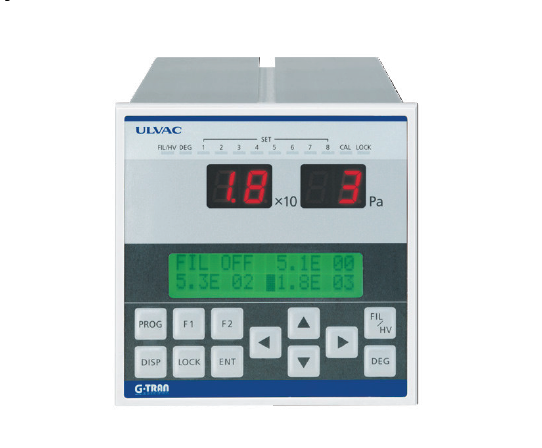

4 channel display unit enables you to connect up to 4 sensor units, multiple measurements and display measured pressure. 8 set points output and I/O · communication control are equipped as standard features. It is possible to measure wide range pressure by the interlock function of the atmospheric pirani gauge or pirani gauge and ionization gauge.

FEATURES

  • 4 Channel Display
    Maximum four sensor units/ box units can be connected
    (Ionization gauge and cold cathode gauge are connectable only
    to CH1)
  • 4 Channel Display is Possible
    4 channel simultaneous measurement function
  • Used as Combination Gauge
    Possible to establish an interlock between the measurement
    of an ion gauge on CH1 and a pirani gauge on CH2
  • Control Output Signal
    Maximum 8 setpoint outputs from 4 gauges can be allocated
    (Channel allocation of each set point can be set from CH1
    to 4.)
  • Power Supply Voltage
    Either DC24V or AC100V can be used as input power source
  • Serial Communication Type
    RS232C communication is standard
  • Vacuum Output Signal
    Pressure is 0 to 10V LOG output/4CH
  • Display Unit
    LED / LCD displays are large, bright and easily to read
  • DIN Standards
    Compatible with DIN standards (compact size of 96 x 96
    mm)

SPECIAL FEATURES / FURTHER APPLICATIONS

  • For vacuum equipment (Photovoltaic field, FPD, Semiconductor
    and optics and electronic parts)
  • For vacuum equipment that require many set points
