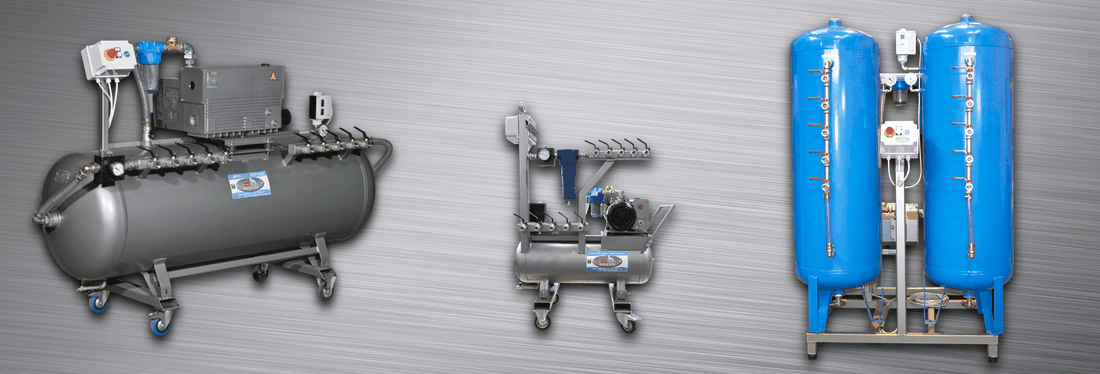

RTM vacuum systems for vacuum infusion (resin transfer moulding), specially designed for resin infusion applications.

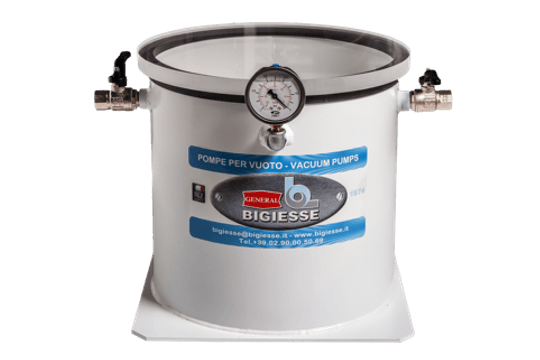

Resin vacuum infusion trap.

Vacuum infusion trap equipped with: a transparent Plexiglas cover, manual vacuum relief valve, manual vacuum pump insulation valve, vacuum gauge.
Nominal pumping speed: 6 / 12 m3/h
Ultimate pressure: 0,5 mbar serie PBOM

RTM vacuum system – 28 m3/hr.

The vacuum pump is assembled directly to the steel tank to reduce clearance requirements. The vacuum pump is equipped with a safety suction filter, non-return valve and shut-off valve. The electrical power panel and controls guarantee maximum efficiency; the pump can be started only if requested, thus reducing energy consumption to a minimum.
The tank features two vacuum outputs: the first output guarantees a maximum pump vacuum level, whereas the second output is equipped with a vacuum reducer for the final pressure adjustment and an active carbon filter.
In addition, the tank is equipped with casters to facilitate displacements inside the production site.
Nominal pumping speed: 28  m3/h
Ultimate pressure: 0,5 mbar serie PBOM

RTM vacuum system – 40/60 m3/h

The vacuum pump is assembled directly to the steel tank to reduce clearance requirements. The vacuum pump is equipped with a safety suction filter, non-return valve and shut-off valve. The electrical power panel and controls guarantee maximum efficiency; the pump can be started only if requested, thus reducing energy consumption to a minimum.
The tank features two vacuum outputs: the first output guarantees a maximum pump vacuum level, whereas the second output is equipped with a vacuum reducer for the final pressure adjustment and an active carbon filter.
In addition, the tank is equipped with casters to facilitate displacements inside the production site.
Nominal pumping speed: 40/60  m3/h
Ultimate pressure: 0,5 mbar serie PBOM

RTM vacuum system – 100 m3/h

The vacuum pump is assembled directly to the steel tank to reduce clearance requirements. The vacuum pump is equipped with a safety suction filter, non-return valve and shut-off valve. The electrical power panel and controls guarantee maximum efficiency; the pump can be started only if requested, thus reducing energy consumption to a minimum.
The tank features two vacuum outputs: the first output guarantees a maximum pump vacuum level, whereas the second output is equipped with a vacuum reducer for the final pressure adjustment and an active carbon filter.
In addition, the tank is equipped with casters to facilitate displacements inside the production site.
Nominal pumping speed: 40/60  m3/h
Ultimate pressure: 0,5 mbar serie PBOM

RTM vacuum system – 220/340 m3/h

The vacuum pump is assembled directly to the steel tank to reduce clearance requirements. The vacuum pump is equipped with a safety suction filter, non-return valve and shut-off valve. The electrical power panel and controls guarantee maximum efficiency; the pump can be started only if requested, thus reducing energy consumption to a minimum.
The tank features two vacuum outputs: the first output guarantees a maximum pump vacuum level, whereas the second output is equipped with a vacuum reducer for the final pressure adjustment and an active carbon filter.
In addition, the tank is equipped with casters to facilitate displacements inside the production site.
Nominal pumping speed: 220/340  m3/h
Ultimate pressure: 0,5 mbar serie PBOM
