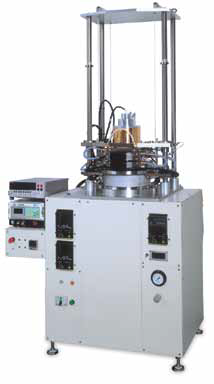

Applying a 500°C maximum temperature difference across a thermoelectric module under test, the PEM-2 finds the thermoelectricconversion rate h by finding the generated power P when a one dimensional heat flow Q passes through the module. A single run generates a complete set of data characterizing module performance over a wide range of temperatures, and shows the results
automatically in a set of elegant graphical displays.
APPLICATIONS
• Power generation efficiency measurements of thermoelectric power generation modules
FEATURES
• Employs an Infrared Gold Image Heating Furnace with excellent temperature controllability
• Transmission heat flow is measured by computer, allowing the accurate measure of the generated heat power Pmax
